Product Name:

5g small base station

  • Gaoxinda has mastered the core technology of end-to-end full chain small base stations from high-level protocol stack, physical layer to RF, has independent product research and development and production capacity, and has become a major partner of operators and vertical industries.

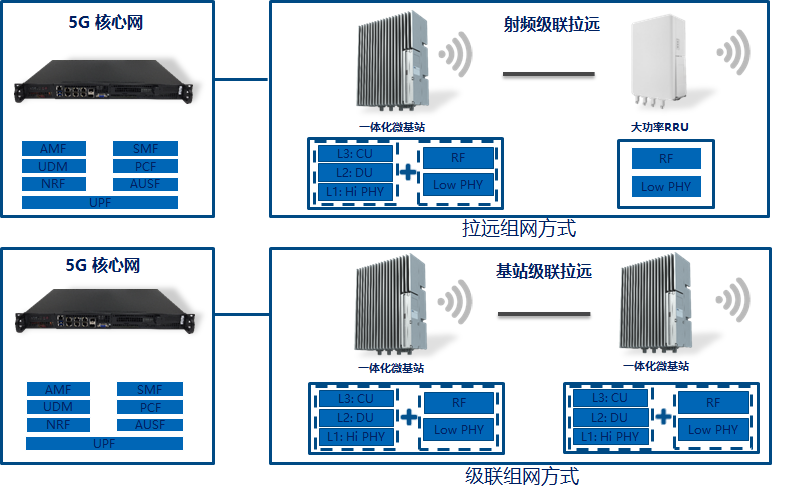

Product form and key technology of gaoxinda 5g small base station


5G一体化微基站




Product form and technical parameters of arm architecture

5G小基站

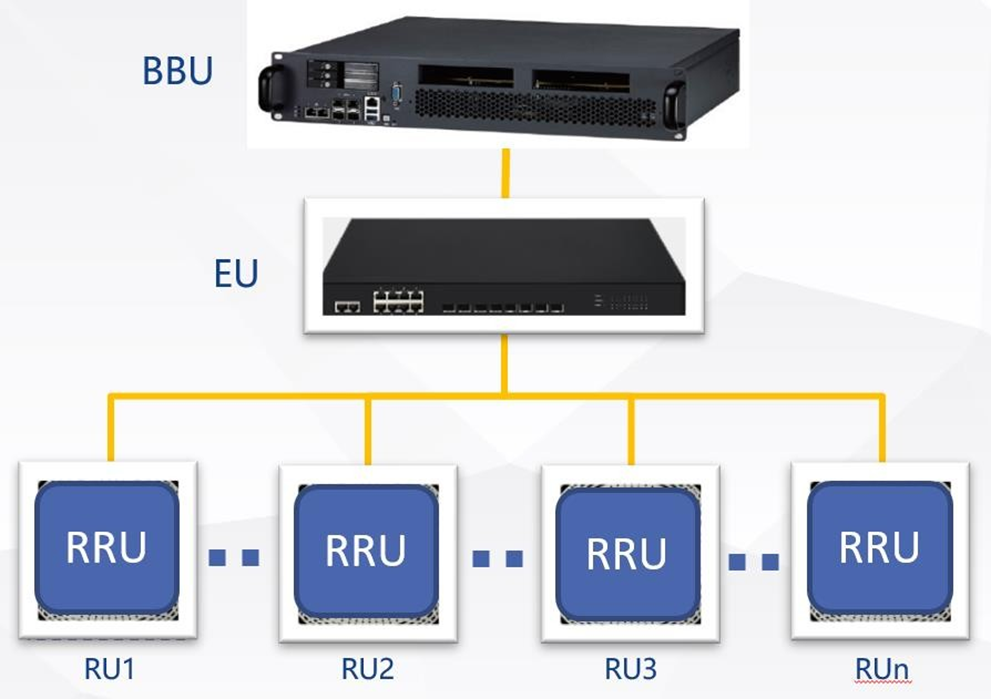

ØBBU：Before the special chip comes out, you can choose a general server: Intel's X86 platform or arm's NXP platform.


ØPhysical 5g vonr video conference layer software: all running on BBU, or low PHY running on RRU. It mainly solves digital to analog conversion, which is the core technology at the bottom.


ØProtocol stack software: running on BBU, it is responsible for resource scheduling and application function implementation.


ØRRU：The core is RF technology, mainly signal transceiver and modulation and demodulation.



  • Application scenario

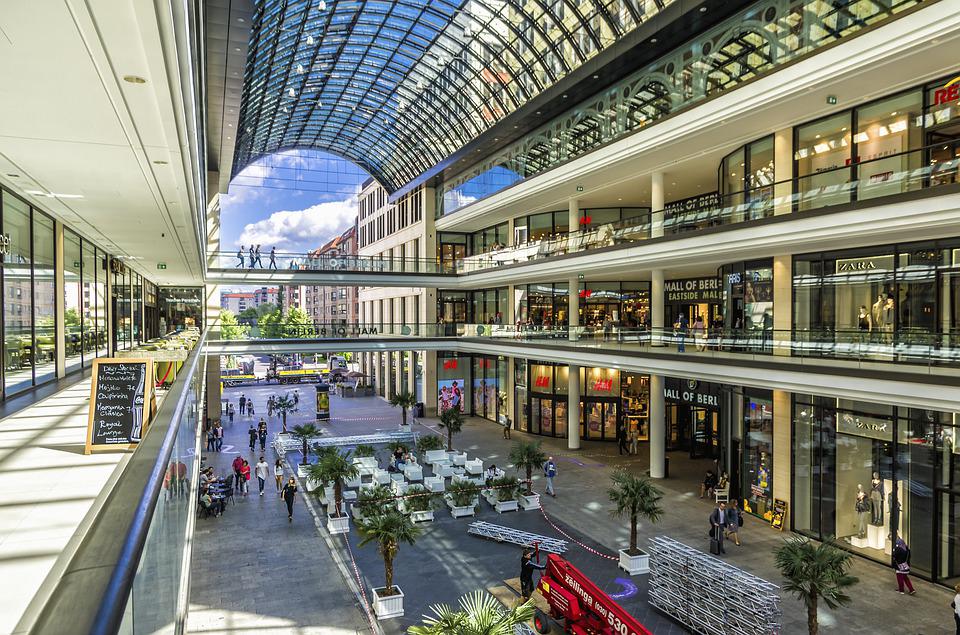

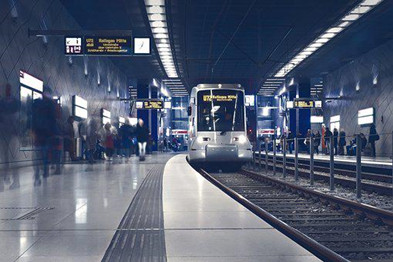

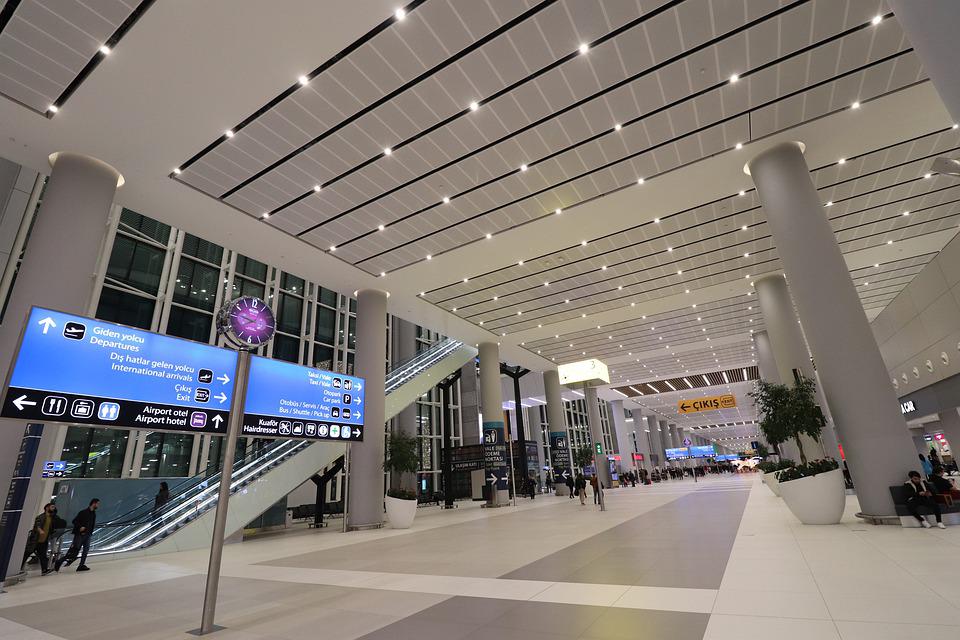

The main application scenarios of 5g micro base stations include: large-scale performances, airports, business centers, subway railways, etc




5G一体化微基站  5G一体化微基站


5G一体化微基站  5G一体化微基站
